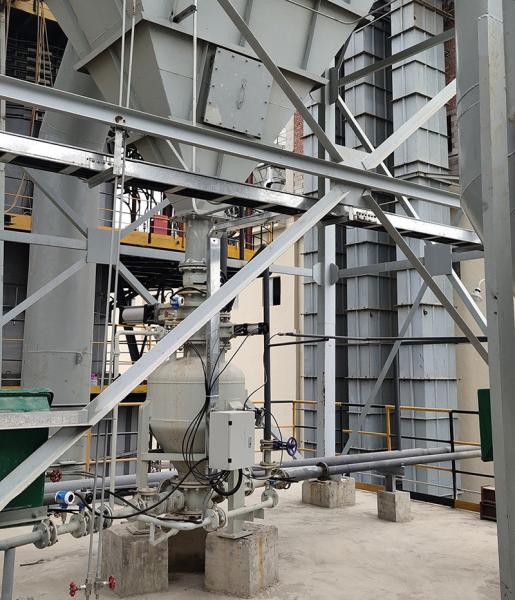

Positive Pressure Dense Phase Pneumatic Conveying Silo Pump For Cement, Raw, Fly Ash, Hydrated Lime, Silicon Powder
Product Introduction:
Manufacturing and application of powder pneumatic conveying pump compartment pump
In the pneumatic conveying industry, the air flow conveying system can be divided into three core systems, namely rotary valve conveying, silo pump conveying, and material seal pump conveying. In recent years, the warehouse pump dense phase conveying system has been more widely used in various industries. Whether it is in cement pneumatic conveying, fly ash pneumatic conveying, white carbon black pneumatic conveying in the chemical industry, titanium dioxide pneumatic conveying, and so on. Both can be pneumatically transported using a silo pump.
Brief introduction
Bin pumps can also be referred to as warehouse type conveying pumps, warehouse type pumps, powder pneumatic conveying pumps, dense phase conveying pumps, etc. Bin pumps is one of many pressure vessels. So the manufacturer of the bin pump must have the corresponding pressure vessel qualification certificate before proceeding with production and manufacturing. After the installation of valves and other accessories, the powder pneumatic conveying pump must undergo a pressure test before the equipment is shipped. Add compressed air to the bin pump, and the pressure limit of each type of dense phase delivery pump is different. The pressure test is to pressurize the gas to the pressure limit of the bin pump, and wait for 2 hours. Observe that there are no abnormalities in the pump body, valves, and pipelines of the warehouse pump. Only after passing the experiment can the equipment be shipped to the production site for operation and use.
Operational principle
The process of dense phase pneumatic conveying requires the interaction and coordination of the feed valve, exhaust valve, inlet valve, and discharge valve, which can cause significant wear on the valve. The system is in a feeding state, where the feeding valve and exhaust valve are opened, the inlet valve and outlet valve are closed, and the material falls into the dense phase pump under the action of gravity; When one or more level gauges in the pump are covered or the set feeding time is reached, the feeding valve and exhaust valve are closed; After the inlet and exhaust valves are closed and the inflation seal is completed, the inlet and outlet valves are opened, and the material enters the pipeline for transportation. When there are two or more end receiving bins, a directional valve, also known as a pneumatic shunt valve, is required.
The bin pump conveying system generally uses an air compressor as the overall conveying system gas source, and the bin pump serves as the feeding device. The materials fall into the feeding device from the silo, and high-pressure gas is input into the conveying pipeline to fully mix the gas and materials, making the materials fluidized. Then, the gas is transported to the end receiving silo through high-pressure air flow. The gas is filtered by the separation device and discharged into the atmosphere, suitable for long-distance and large conveying conditions;
System advantages: low flow rate, low wear, less crushing, low energy consumption, and intermittent conveying.
The system has a high degree of automation, microcomputer control, dynamic display of operating conditions, fault alarm, sensitive response, complete processing functions, remote and manual functions, and flexible, convenient, and reliable operation and management.
Main features of the product
① Large conveying capacity: ＞ 300t/h;
② Long distance: ＞ 2000m;
③ Low power consumption: ＜ 3.8kWh/t · km;
④ Low wear and tear: pipeline life>10 years;
⑤ Low speed: initial speed 6-10m/s;
⑥ High mixing ratio: ＞ 30kg/kg;
⑦ Flexible process layout, dust-free, high operation rate, lower investment compared to mechanical conveying, and lower maintenance costs
Large Capacity Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/H | PCD26/H | PCD28/H | PCD30/H | Conveying Distance |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 50~80 | 60~90 | 65~110 | 80~130 | 200 | 20 |
| Fly Ash | 0.75 | 75~125 | 85~130 | 95~160 | 125~190 | 200 | 20 |
| Limestone Powder/Mineral Powder | 0.8 | 80~130 | 90~140 | 100~170 | 130~200 | 200 | 20 |
| Cement/Raw Meal | 1 | 100~150 | 115~175 | 130~215 | 165~260 | 200 | 20 |
Long-distance Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/L | PCD26/L | PCD28/L | PCD30/L | Conveying Distance |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 20~40 | 25~45 | 30~55 | 45~65 | 1000 | 25 |
| Fly Ash | 0.75 | 35~60 | 45~65 | 45~80 | 65~95 | 1000 | 25 |
| Limestone Powder/Mineral Powder | 0.8 | 40~65 | 45~70 | 50~85 | 70~100 | 1000 | 25 |
| Cement/Raw Meal | 1 | 50~80 | 55~90 | 65~110 | 90~120 | 1000 | 25
|
Conventional Grid Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density(t/m3) | Model | PCD18/N | PCD20/N | PCD20/N | Reference Conveying Distance |
| Specification | 5.0~6.7m3 | 7.0~10.0m3 | 10.0~15.0m3 | Level (m) | Vertical (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 12~20 | 16~32 | 25~50 | 500 | 30 |
| Fly Ash | 0.75 | 18~32 | 25~48 | 35~70 | 50 | |
| Limestone Powder/Mineral Powder | 0.8 | 20~35 | 26~51 | 38~75 | 500 | 30 |
| Cement/Raw Meal | 1.0 | 24~42 | 32~65 | 48~95 | 500 | 30 |
| Silicon Powder | 1.2 | 28~50 | 40~75 | 55~115 | 500 | 30
|
Parameter Table Of Small Size Pneumatic Conveying Bunker Pump
| Material | Bulk Density(t/m3) | Model | PCD08/M | PCD10/M | PCD12/M | PCD14/M | Reference Conveying Distance |
| Specification | 0.2~0.5m3 | 0.6~1.6m3 | 1.5~2.5m3 | 2.5~5.0m3 | Level (m) | Vertical (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 0.5~1.8 | 1.5~5.5 | 5.0~9.0 | 8.0~18.0 | 100 | 20 |
| Fly Ash | 0.75 | 0.9~2.8 | 2.5~8.5 | 7.0~14.0 | 12.0~27.0 | 100 | 20 |
| Limestone Powder/Mineral Powder | 0.8 | 1.0~3.0 | 3.0~9.0 | 8.0~15.0 | 12.0~28.0 | 100 | 20 |
| Cement/Raw Meal | 1.0 | 1.2~3.5 | 3.5~11.5 | 10.0~18.0 | 16.0~36.0 | 100 | 20 |
| Silicon Powder | 1.2 | 1.5~4.0 | 4.5~13.5 | 12.0~20.0 | 19.0~43.0 | 100 | 20 |
