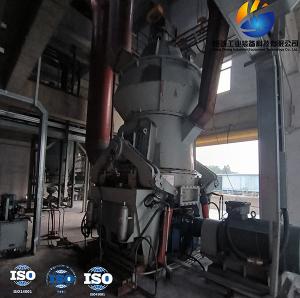

Coal Powder Vertical Grinding Mill With High Efficiency Automatic Discharging System

Fly ash is a renewable resource, and vertical mill is a new type of device that efficiently utilizes fly ash resources. The performance of fly ash after crushing depends on its particle size and morphology.
Fly ash is a very important resource. The fly ash production line uses fly ash or other slag or tailings as raw materials, and obtains recycled aggregates through grinding and processing processes; Fly ash can be used as an additive for cement, mortar, and concrete, and as a component of cement and concrete.
Working principle: The electric motor drives the grinding disc to rotate through a reducer, and the material falls into the center of the grinding disc from the feeding port. At the same time, hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding disc and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The crushed material is carried up by the high-speed airflow at the edge of the grinding disc, and large particles directly fall onto the grinding disc for re grinding. When the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls onto the grinding disc for re grinding, and qualified fine powder is discharged with the airflow, Collect in the powder collection device, which is the product. Materials containing moisture are dried during contact with hot gases to achieve the required product moisture.

Parameter Table of Coal Vertical Mill

2. Advantages and characteristics
As a specialized equipment for grinding coal powder, this grinder is equipped with explosion-proof devices and anti-static treatment devices, and is equipped with a full pulse dust collection system. The process flow is scientific and reasonable, making it an ideal equipment for grinding coal powder.
Advantage 1: Low investment
It integrates crushing, drying, grinding, grading, and conveying, with a simple process flow, fewer system equipment, compact structural layout, and local construction, reducing enterprise investment costs.
Advantage 2: Easy to maintain
The replacement of the roller sleeve liner and the maintenance of the mill have a large space, making the maintenance work very convenient;
Advantage 3: Reliable performance
The grinding roller limit device operates more smoothly and can avoid vibration caused by material breakage. Adopting a new type of grinding roller sealing device, the sealing performance is more reliable.
Advantage 4: High degree of automation
Adopting a PLC fully automatic control system, remote control can be achieved, making operation more convenient.
Advantage 5: High grinding efficiency
Grinding efficiency is high, energy consumption is low, and the production capacity of a single machine is greater, which can utilize low valley electricity.
Advantage 6: Good quality of finished products
The finished product has uniform and fine particle morphology, narrow particle size distribution, good flowability, strong product adaptability, and higher whiteness and purity.

Machine Parts


Engineering Cases
Engineering Design and Equipment Manufacturing Supply of HVM2800M Vertical Pulverized Coal Preparation System
Processing material type: bituminous coal
Capacity: ≥ 80t/h
Product fineness: 200 mesh, 85% pass

Automatic Discharging System Vertical Coal Mill

Vertical Coal Powder Mill

500t/h Vertical Coal Mill
